Polyurethane spray machine

  • Polyurethane polyurea spraying machine  Hishte-30
  • Polyurethane polyurea spraying machine  Hishte-30
Polyurethane polyurea spraying machine  Hishte-30Polyurethane polyurea spraying machine  Hishte-30

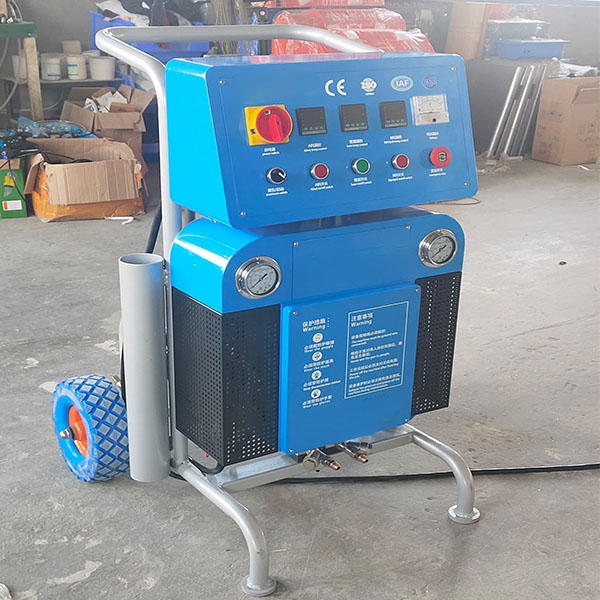

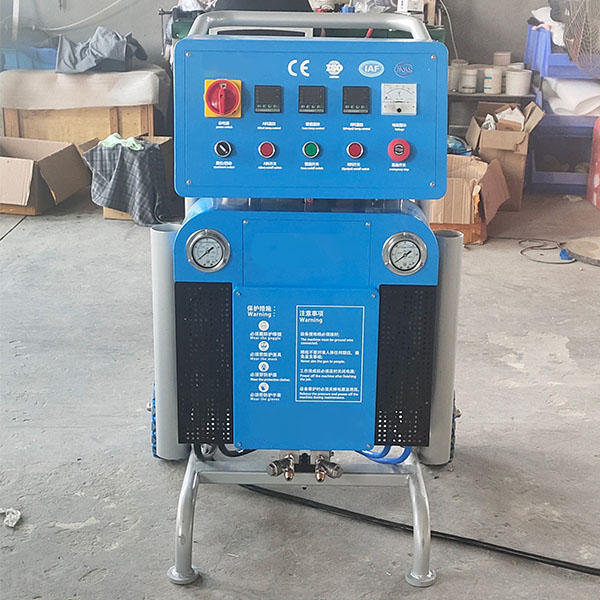

Polyurethane polyurea spraying machine Hishte-30

  • Brand Name: Hishte
  • Processing Type: Foaming Machine
  • Key Selling Points: Easy to Operate
  • Place of Origin: Tianjin, China
  • Product description:
  • INQUIRY

Polyurethane Polyurea Spraying Machine Hishte-30 applications:

1. Insulation & Coating: external wall insulation, internal wall insulation, roof, cold storage, ship cabin, cargo containers,trucks, refrigerated trucks, tank, etc.

2. Casting: solar water heaters, tank insulation, cabin, insulation board, security doors, refrigerators, pipes, road construction, packaging, road construction, wall insulation, etc.



STANDARD CONFIGURATION

Main equipment: 1 set
Spray gun: 1 piece
Heating pipe: 15 m (50ft)
3m pipe connecting to the gun: 1 set
Feeding pump: 2 sets
Spare parts :1 set
Tools :1 set
Package: plywood tray



TECHNICAL DATA

Power source: 3-phase 3-wires, 380V, 50Hz

Total power : 15.5KW

Heating power: 15KW

Air source : 0.5~1 MPa ≥1m3/min
Transformer power
 : 3.5KW

Driven way:  driven pneumatic

Unilateral pressure : 28MPa

Ratio of raw materials: 1:1

Output of raw materials: 2~10kg/ min
Max. length (optional): 90M

Heating temperature range: 0℃~90℃(32°F~194°F)





SHIPPING PARAMETER :

Dimension: 700mm X 900mm X 1300mm
Weight:
112Kg




 Polyurethane Polyurea Spray Machine Features:

1. Pneumatic supercharging device, with small volume, light weight, low failure rate, simple operation, easy operation and other great features;

2. Adopting the most advanced ventilation method, guarantee equipment working stability to the maximum;

3. Minimizing spraying congestion with multi-feedstock device;

4. Multi-leakage protection system to protect the safety of the operator;

5. Equipped with emergency switch system, help operator deal with emergencies rapidly;

6. Great 380v heating system enables rapid warming of raw materials to the best state, speeds up normal operation progress;

7. Digital counting system can understand original consumption timely;

8. Humanized design with equipment operation panel, super easy to get the hang of it;

9. The latest spraying gun has great features like small volume, light weight, low failure rate, etc. ;

10. Lifting pump adopts big change ratio method, the winter also can easily feed raw materials high viscosity
