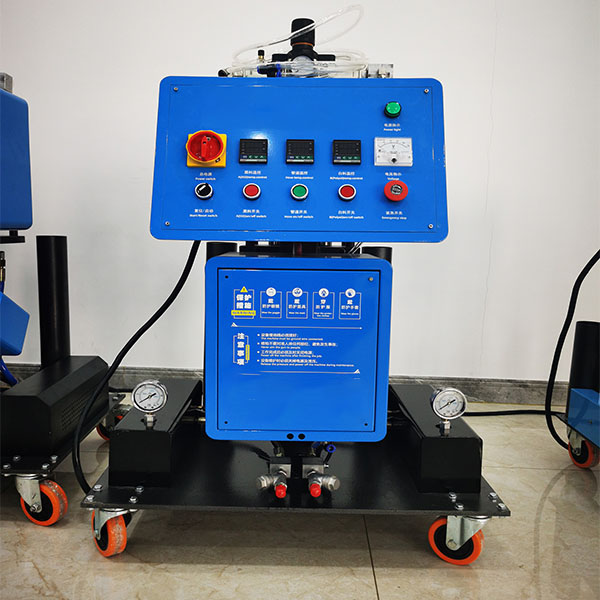

Polyurethane Spray Machine Equipment Hishte-III applications:

1. Insulation & Coating: external wall insulation, internal wall insulation, roof, cold storage, ship cabin, cargo containers,trucks, refrigerated trucks, tank, etc.

2. Casting: solar water heaters, tank insulation, cabin, insulation board, security doors, refrigerators, pipes, road construction, packaging, road construction, wall insulation, etc.

STANDARD CONFIGURATION

Main equipment: 1 set
Spray gun: 1 piece
Heating pipe: 15 m (50ft)
3m pipe connecting to the gun: 1 set
Feeding pump: 2 sets
Spare parts :1 set
Tools :1 set
Package: plywood tray

TECHNICAL DATA

Power source: 3-phase 3-wires, 380V, 50Hz

Total power : 10KW

Heating power: 9.5KW

Air source : 0.5~0.8 MPa ≥0.9m3/min
Transformer power : 3.5KW

Driven way:  driven pneumatic

Unilateral pressure : 25MPa

Ratio of raw materials: 1:1

Output of raw materials: 2~10kg/ min
Max. length (optional): 75M

Heating temperature range: 0℃~90℃(32°F~194°F)

SHIPPING PARAMETER :

Dimension: 700mm X 900mm X 1300mm
Weight: 130Kg


Polyurethane Spray Machine Features:

1. Pneumatic supercharging device, with small volume, light weight, low failure rate, simple operation, easy operation and other great features;

2. Adopting the most advanced ventilation method, guarantee equipment working stability to the maximum;

3. Minimizing spraying congestion with multi-feedstock device;

4. Multi-leakage protection system to protect the safety of the operator;

5. Equipped with emergency switch system, help operator deal with emergencies rapidly;

6. Great 380v heating system enables rapid warming of raw materials to the best state, speeds up normal operation progress;

7. Digital counting system can understand original consumption timely;

8. Humanized design with equipment operation panel, super easy to get the hang of it;

9. The latest spraying gun has great features like small volume, light weight, low failure rate, etc. ;

10. Lifting pump adopts big change ratio method, the winter also can easily feed raw materials high viscosity.
