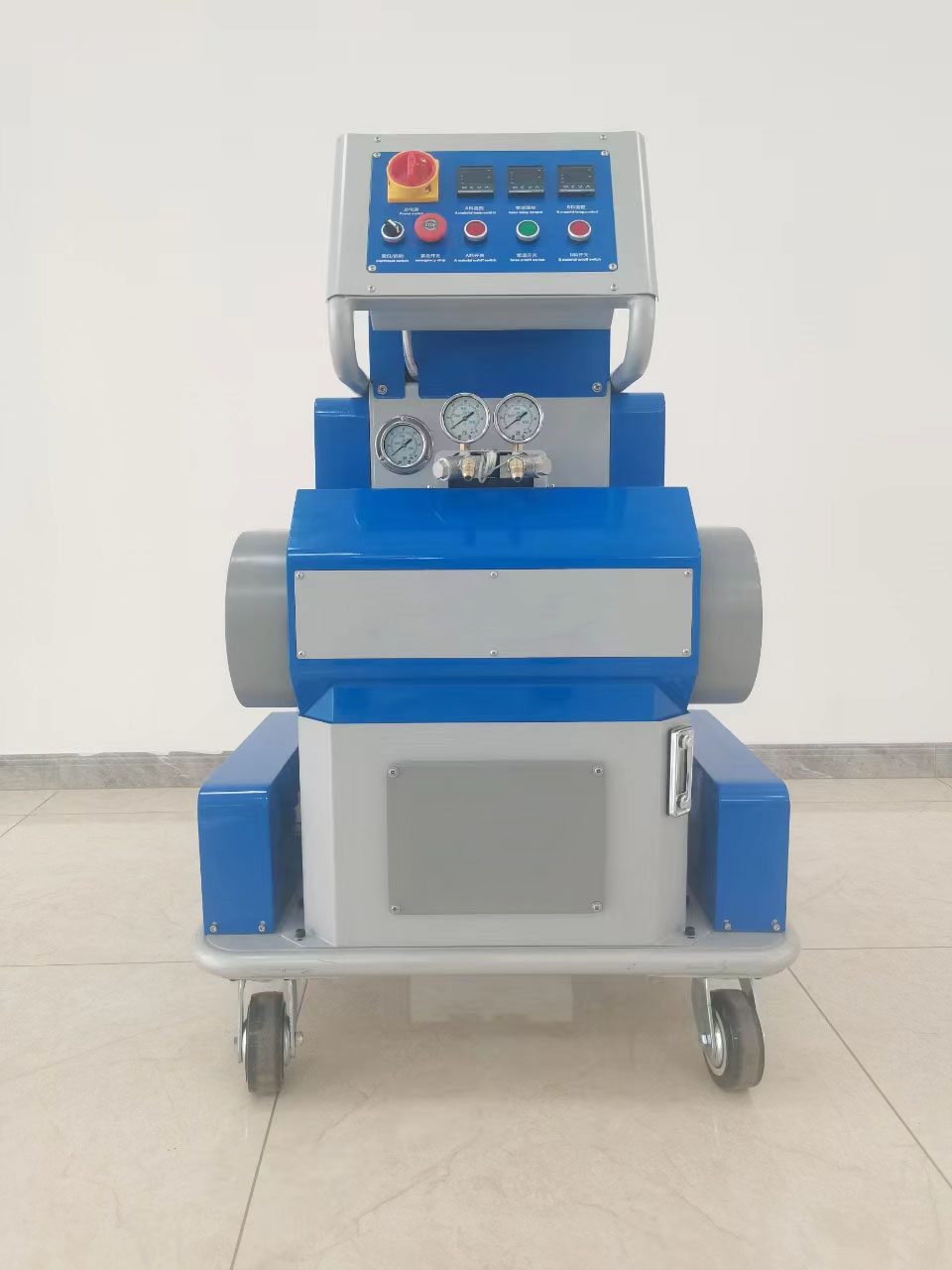

Hydraulic Polyurea Spray Machine Hishte-5600

This machine can be widely used in a variety of construction environments, a variety of two-component materials application polyurea elastomer polyurethane fully water foaming polyurethane material application industry : Building waterproof, anti-corrosion, toy landscape, stadium water parkrailway automobile, ship, mining, oil, electrical, food and other industries.

Description:

This kind of machine can be used in many areas and spray a lot of double component materials, such as spray a variety of two-component materials: polyurea elastomer, polyurethane elastomer, polyurethane foam and polyurea,polyurethane adhesive and sealants.

The advantages of this kind of machine:
1. It’s very convenient to moving more suitable for factory and construction contractor.
2. It provides the maxim function for the working.
3. It has the special FGPQ spray gun, simple operation, spray a better effect.

STANDARD CONFIGURATION

Main equipment: 1 set
Spray gun: 1 piece
Heating pipe: 15 m (50ft)
Feeding pump: 2 sets
Package: plywood tray

TECHNICAL DATA

Power source: 3-phase 3-wires, 380V, 50Hz

Total power : 26KW

Heating power: 22KW
Transformer power : 3.5KW

Driven way: hydraulic driven

Hydraulic pressure : 6-18Mpa

Air source : 0.5-0.8 MPa ≥0.5m3/min

Unilateral pressure : 36MPa

Ratio of raw materials: 1:1

Output of raw materials: 2~12kg/ min
Max. length (optional): 105M

Heating temperature range: 0℃~90℃(32°F~194°F)

SHIPPING PARAMETER :

Dimension: 1350mm*1060mm*1650mm
Weight: 306Kg
